Casting Yield Explained: Part Weight, Pour Weight, Gating Weight & Metal Returns

A foundry may advertise its maximum pouring weight or furnace capacity, but that number is not the same as the maximum finished part weight.

Every casting also needs metal for gates, runners, sprues, and sometimes feeders. For small investment castings assembled on a tree, this non-product metal can even weigh more than all the parts combined. For a large casting poured individually, the opposite may be true.

Understanding casting yield explains the difference—and helps buyers interpret foundry weight limits, material cost, and gating design more accurately.

Casting Weight, Pour Weight, and Furnace Capacity Are Different Numbers

Before discussing casting yield, several weight terms need to be separated.

These numbers are related, but they are not interchangeable.

For a simple casting, the relationship can be expressed roughly as:

Pour Weight = Good Casting Weight + Gating / Feeding Weight

If several parts share one investment-casting tree:

Pour Weight = Total Good Casting Weight on the Tree + Total Tree / Gating Weight

The final machined product can weigh slightly less again because machining removes additional material from the casting.

This is why a statement such as:

“Our furnace can melt 100 kg.”

does not mean:

“We can cast a 100 kg finished component.”

Some of that available metal must usually become the gating and feeding system required to produce the component successfully.

How Casting Yield Is Calculated

Casting yield is a measure of how much of the poured metal becomes acceptable casting.

A common expression is:

Casting Yield = Good Casting Weight ÷ Total Pour Weight × 100%

Suppose one investment-casting tree contains 5 kg of acceptable parts and the complete poured tree weighs 12.5 kg.

The casting yield is:

5 ÷ 12.5 × 100% = 40%

The remaining 60% is not automatically defective metal. Much of it may simply be the sprue, runners, gates, and other process metal needed to fill and feed the parts.

Casting yield is therefore primarily a material-efficiency measure.

It is not, by itself, a measure of casting quality.

A foundry can increase yield by making the gating system smaller, but if that change causes incomplete filling or shrinkage, the supposedly better yield has made the process worse.

Why Furnace Capacity Does Not Equal Maximum Finished Part Weight

A furnace defines how much molten metal is available.

It does not define how much of that metal can become the customer’s part.

Imagine a foundry with enough furnace capacity to prepare a 100 kg pour.

If a particular casting requires 25 kg of gates, runners, and feeding metal, then a 100 kg finished component would already exceed the available pour weight.

But even that calculation is still incomplete.

Maximum feasible casting weight can also depend on:

• ceramic shell size and strength;
• wax-pattern and tree handling;
• pouring equipment;
• mold handling;
• part geometry;
• wall thickness;
• solidification and feeding requirements;
• available heat-treatment and handling equipment.

This is why YTD evaluates investment-casting weight limits from the actual 3D geometry and proposed gating system rather than using furnace capacity alone as a finished-part limit.

Our investment casting service describes the broader production process, but the practical feasibility of a large part still needs to be reviewed project by project.

Why Small Investment Castings Can Have Low Casting Yield

It is easy to assume that a small part should require very little excess metal.

Investment casting does not always work that way.

Small wax patterns are commonly assembled onto a shared central sprue to form a casting tree. One tree may carry many individual parts.

The central metal system has several jobs. It has to deliver molten metal to every casting, remain structurally practical during wax assembly and shell building, and provide the flow and feeding conditions required during pouring and solidification.

When each product weighs only a small amount, the weight of that common system can become large compared with the parts themselves.

For example, imagine a hypothetical tree containing 24 parts weighing 0.20 kg each.

The total product weight is:

24 × 0.20 = 4.8 kg

If the central sprue, runners, and gates weigh 7.2 kg, total pour weight is 12 kg.

The yield is only:

4.8 ÷ 12 = 40%

In this example, the gating system weighs more than all 24 products combined.

That does not automatically mean the tree was badly designed.

The gating still has to fill all the parts reliably.

The correct question is whether the gating system is larger than necessary for a stable process, not whether it weighs more than the components.

Why Large Single Castings Can Have a Higher Part-to-Gating Ratio

Large investment castings often behave differently.

Instead of hanging dozens of products on one central tree, a large component may be poured individually.

The product itself then represents a much larger share of the total metal volume.

Consider another hypothetical example.

A single casting weighs 30 kg after gate removal, while its complete gating system weighs 12 kg.

Total pour weight is 42 kg.

The casting yield is approximately:

30 ÷ 42 = 71%

Here, the product weighs substantially more than the metal that is later removed.

Again, this is only an illustration—not a typical or guaranteed investment-casting yield.

Large parts do not automatically have better yield.

A difficult large casting may require substantial feeding metal, multiple gates, or a heavy sprue system. Thick isolated sections or long flow paths can make the gating system much larger.

The reason large castings can show a higher product-to-gating ratio is simply that the finished component itself occupies a larger share of the poured metal.

How Part Geometry Changes Gating Weight

Two castings with the same finished weight can require very different amounts of gating.

A compact component with relatively uniform wall thickness may fill and solidify with a simple gate arrangement.

Another component of the same weight might contain:

• long thin sections;
• several isolated heavy bosses;
• abrupt wall-thickness changes;
• multiple flow paths;
• areas that are difficult to feed during solidification.

That second part may require more metal in the gating system to maintain reliable filling and feeding.

This is one reason a foundry cannot determine required pour weight from finished product weight alone.

The geometry has to be reviewed first.

YTD’s gating system guide explains how sprues, runners, gates, and feeding arrangements influence metal flow and casting quality.

In practical engineering terms, gating weight is a consequence of what the molten metal must do inside the mold.

Why There Is No Standard Gate-to-Part Weight Ratio

Customers sometimes ask:

“If my product weighs 10 kg, how much extra metal should I allow for gates and runners?”

There is no reliable universal percentage.

The ratio changes with:

• casting process;
• part geometry;
• number of parts on a tree;
• alloy;
• section thickness;
• filling distance;
• feeding requirements;
• tree arrangement.

Even within investment casting, two parts of similar weight can have very different casting yields.

One may be a compact component placed efficiently on a multi-part tree.

Another may need a much larger gate because it contains thin or difficult-to-fill geometry.

A third may be a large single casting whose own mass dominates the pour.

That is why a percentage taken from another project should not be treated as a production assumption.

The foundry normally has to build the casting layout first, then estimate the resulting tree or pour weight.

Higher Casting Yield Does Not Always Mean Better Gating

Higher casting yield is generally desirable because more of the poured metal becomes usable product.

But yield cannot be optimized independently from casting quality.

Suppose a gating design produces a 60% yield.

An engineer reduces the gate and runner weight and raises the theoretical yield to 75%.

If that new design causes:

• incomplete filling;
• cold shuts;
• shrinkage;
• oxide entrainment;
• higher scrap;

then the material saving has not improved the process.

The foundry may actually consume more metal per acceptable part after rejected castings and rework are considered.

A useful principle is:

Casting yield should be the result of an efficient, sound gating design—not a target that overrides filling and feeding requirements.

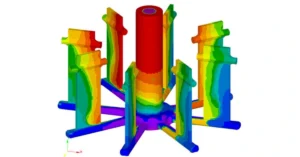

Casting simulation can help here because alternative runner and gate designs can be compared before tooling and production are finalized.

At YTD, casting simulation is used during suitable tooling and process-development projects to evaluate filling, solidification, hot spots, and gating behavior before production.

How Gating Weight Affects the Cost of a Casting

Even when gate and runner metal can later be recovered, low casting yield still affects manufacturing cost.

The extra metal has already been:

• purchased or prepared;
• melted;
• handled;
• poured;
• cooled;
• removed from the casting;
• sorted;
• transported or returned for remelting.

Remelting also consumes energy.

There are additional metal losses through oxidation, slag, dross, handling, and other process losses depending on the alloy and foundry operation.

This means:

Recoverable metal is not the same as free metal.

For expensive materials such as stainless steel, nickel alloys, or cobalt-based superalloys, yield can have a particularly noticeable effect on cost.

That is one reason foundries try to reduce unnecessary gating weight while maintaining a safe casting process.

What Happens to Gates, Runners, and Sprues After Cut-Off?

Once the ceramic shell has been removed and the castings are separated from the tree, the remaining sprue, runners, and gates are often called foundry returns or revert material.

They still contain valuable metal.

What happens next depends on the alloy, contamination risk, specification, and foundry’s melting practice.

Some Returns Can Be Remelted in the Foundry

When the alloy identity is known and the material remains sufficiently clean, gates and runners may be segregated by grade and returned to a later melt.

This is common in metalcasting.

The foundry still has to control how much return material is used, because repeated melting can affect chemistry and introduce contamination or oxidation.

Fresh alloy additions may therefore be blended with returns according to the foundry’s melt-control procedure.

Other Metal Is Sent to a Recycling or Alloy-Processing Company

Not every gate goes directly back into the same furnace.

Some metal may be sold or sent to a specialist recycler or alloy processor.

This can make sense when:

• the foundry does not remelt that alloy internally;
• contamination limits direct reuse;
• the material requires specialized refining;
• the alloy is valuable enough to justify a controlled recycling stream.

High-value nickel- and cobalt-based materials are a good example.

Superalloy revert has substantial value, but chemistry and contamination control can be strict. Specialized companies may process the returns back into suitable alloy feedstock.

YTD’s superalloy casting projects therefore require much tighter material segregation than an ordinary low-alloy steel casting.

Remelting Gates Does Not Make Casting Yield Unimportant

A reasonable customer question is:

“If the gate is remelted anyway, why does its weight matter?”

Because recycling is not a perfect closed loop.

Every additional kilogram of process metal still has to pass through part of the manufacturing cycle.

It consumes furnace capacity and energy during the first melt.

It has to be cut from the casting and handled afterward.

If remelted internally, it has to be prepared and melted again.

If sold to a recycler, the foundry receives scrap or revert value rather than recovering the full cost of virgin certified alloy and processing.

Some material will also be lost through normal melting and handling losses.

So increasing casting yield remains economically useful even when foundry returns are carefully recycled.

The objective is not necessarily to eliminate non-product metal.

It is to use only the gating and feeding metal required for a stable casting process.

Casting Yield Is Different From Machining Material Utilization

Casting yield and machining material utilization are related but should not be confused.

Casting yield compares good casting weight with total poured metal.

After gate removal, the casting may still have machining allowances.

Suppose the good casting weighs 10 kg but the final CNC-machined component weighs 9.2 kg.

The casting yield calculation normally works from the good casting weight, not the final 9.2 kg shipping weight.

The 0.8 kg removed by CNC machining belongs to a different material-utilization question.

This distinction becomes useful when comparing casting and machining.

A near-net-shape casting may have a moderate foundry yield but still save a large amount of material compared with machining the same component from a much larger billet.

The complete manufacturing economics therefore involve both:

casting yield + post-cast material removal

rather than either number in isolation.

How a Foundry Estimates the Practical Maximum Casting Weight

When a buyer asks:

“What is the heaviest part you can cast?”

the foundry cannot always answer correctly from the furnace specification alone.

For investment casting, the engineering review needs to consider the proposed component together with its casting system.

The foundry first needs to understand the product geometry and determine whether the component will be cast individually or as part of a larger tree.

A preliminary gating layout then gives a much better estimate of total pour weight.

The question becomes:

Finished casting weight + required gating weight = can this complete pour be handled by the available process?

The review also has to consider whether the ceramic shell, dewaxing equipment, handling equipment, pouring system, and downstream operations can manage the resulting size and weight.

For a difficult large component, solidification may become the limiting factor long before furnace capacity does.

This is why a foundry’s published maximum part weight should be treated as a capability range, not an unconditional promise for every geometry.

What Buyers Should Ask When a Foundry Lists a Maximum Casting Weight

If a foundry advertises a large maximum investment-casting weight, one useful follow-up question is:

Does that number mean finished casting weight, tree weight, or maximum pour weight?

Those are different capabilities.

A second useful question is whether the stated limit assumes a particular type of geometry.

A compact casting with simple feeding may be feasible at a much greater finished weight than a long, thin, highly complex component using the same furnace.

Buyers can also ask whether the maximum weight includes the full gating system and whether very large components are cast individually.

These questions are more informative than comparing two suppliers only from a number such as:

Foundry A: 80 kg
Foundry B: 100 kg

Without knowing how the number is defined, the comparison may not mean very much.

How YTD Evaluates Casting Weight and Pour Weight

At YTD Foundry, furnace and pouring capacity are only part of the weight assessment for a new investment-casting project.

The review begins with the actual part.

Geometry, material, wall thickness, expected gating system, tree arrangement, and solidification behavior determine how much metal must be poured to produce the required casting.

Small parts may be assembled in multiples on one tree, and the central sprue and runner system can represent a large share of total pour weight.

Large parts are more likely to be cast individually, so the finished casting can represent a larger percentage of the total metal. But difficult geometry can still require substantial gating and feeding.

For this reason, YTD evaluates maximum feasible finished-part weight from the drawing or 3D model rather than simply converting furnace capacity into a product-weight limit.

The same engineering review can also consider tooling, investment casting, heat treatment, machining, and inspection as one production route.

Final Thoughts

Casting weight, pour weight, and furnace capacity describe different things.

The difference between them is the metal required to fill and feed the casting—and that amount changes with part size, geometry, alloy, and tree design.

For buyers, there is no reliable universal gate-to-part weight ratio. The practical way to evaluate a project is to review the actual geometry, design the casting system, and then calculate the total pour weight and expected casting yield.
