Custom Aluminum Casting
for Performance Optimization
YTD is an experienced aluminum casting manufacturer providing custom casting solutions for industrial, automotive, and engineering applications.
About Aluminum Casting
Aluminum alloys are widely used in casting due to their low melting point, excellent fluidity, and suitability for various casting processes. By combining aluminum’s outstanding strength-to-weight ratio with the design flexibility of casting, manufacturers can create lightweight and complex components with integrated structures.
At YTD, we use aluminum alloy casting to help customers simplify part designs, consolidate multiple components into one casting, and reduce machining and assembly requirements. For applications requiring higher mechanical performance, cast aluminum parts can be further strengthened through heat treatment. This makes aluminum casting an efficient solution for producing lightweight, complex, and high-performance components.
Aluminum Casting Processes

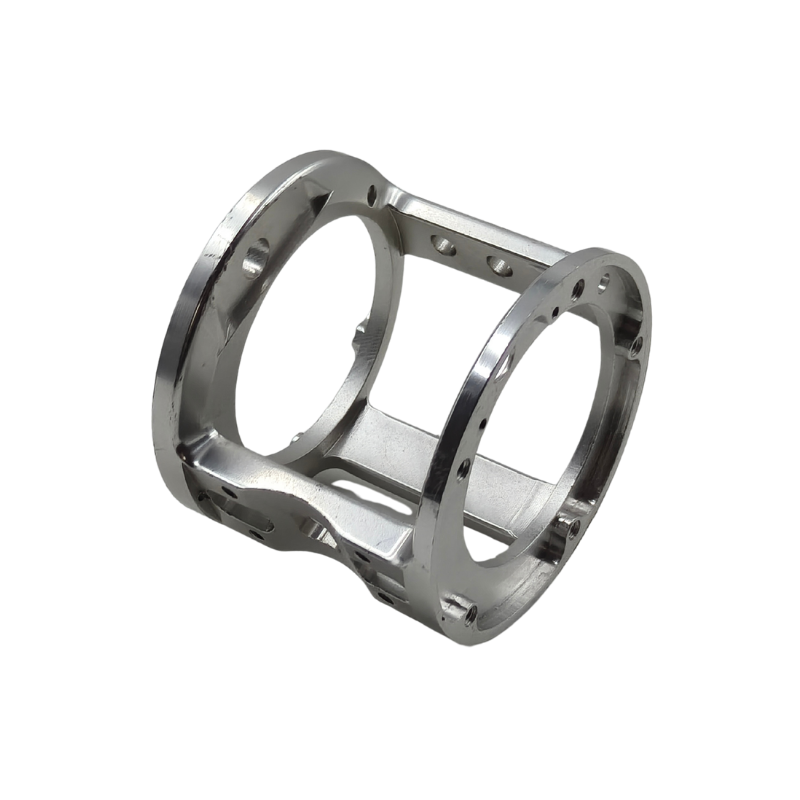

Aluminum Investment Casting
For complex aluminum components requiring excellent surface finish and dimensional accuracy.

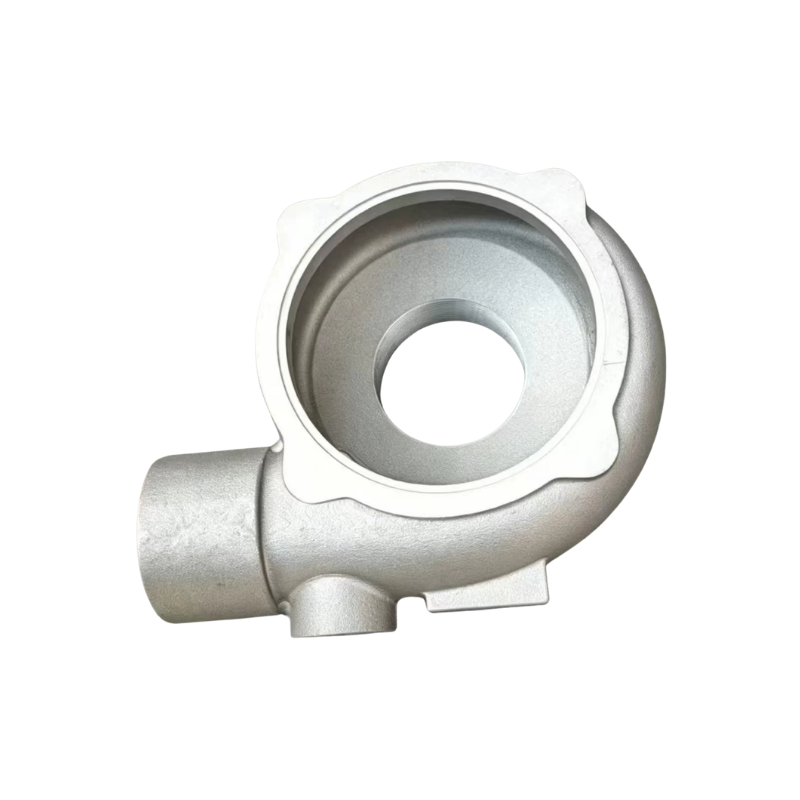

Aluminum Sand Casting
For large aluminum components with flexible designs and cost-effective production.

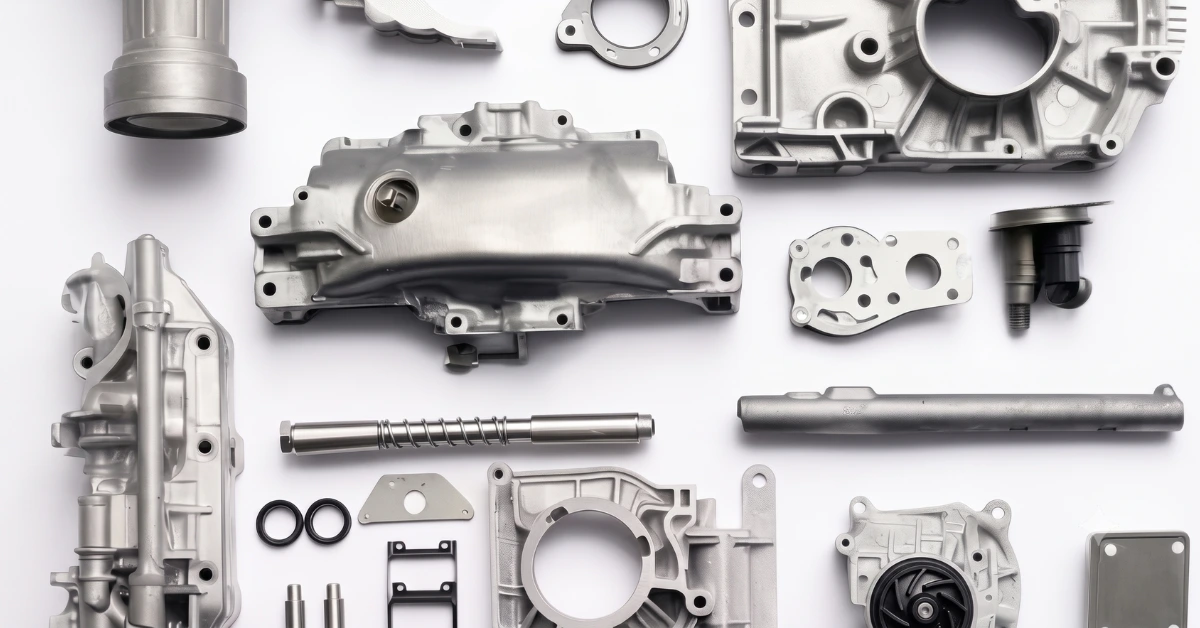

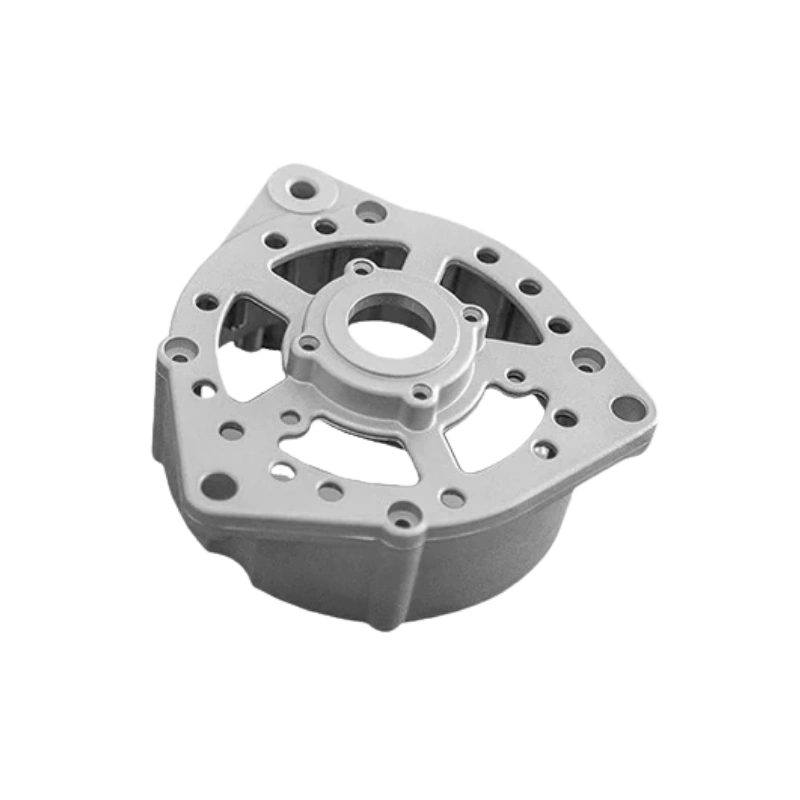

Aluminum Die Casting
For high-volume aluminum components requiring efficiency and consistent quality.
Custom Aluminum Castings for Your Application
From prototypes to production runs, YTD provides custom aluminum castings engineered to meet your dimensional, performance, and application requirements.
Get a QuoteA356 Aluminum Alloy
As an aluminum-silicon-magnesium alloy, A356 provides good fluidity for producing complex cast components and can be significantly strengthened through T6 heat treatment. It’s also a flexible material that can be cast with most casting processes except high-pressure die casting. At YTD, we recommend sand casting and investment casting, one for large aluminum parts and the other for precision small to medium castings.
| Density | Melting Range | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|---|
| 2.67 g/cm³ | 555–615°C (1031–1139°F) | 230–310 MPa (33–45 ksi) | 165–230 MPa (24–33 ksi) | 3–10% | 60–90 HB |
A357 Aluminum Alloy
A357 is a high-strength aluminum-silicon-magnesium casting alloy known for its excellent mechanical properties and heat-treatability. Compared with A356, it contains a higher magnesium content, allowing it to achieve improved strength and hardness after T6 heat treatment while maintaining good castability and corrosion resistance.
| Density | Melting Range | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|---|
| 2.67 g/cm³ | 555–615°C (1031–1139°F) | 300–380 MPa (44–55 ksi) | 220–300 MPa (32–44 ksi) | 3–8% | 80–110 HB |
A380 Aluminum Alloy
A380 is one of the most widely used aluminum alloys for die casting due to its excellent fluidity, good pressure tightness, and balanced mechanical properties. Its ability to fill complex molds and maintain dimensional consistency makes it ideal for high-volume production of intricate components.
| Density | Melting Range | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|---|
| 2.74 g/cm³ | 540–590°C (1004–1094°F) | 150–170 MPa (22–25 ksi) | 165–230 MPa (24–33 ksi) | 2–4% | 70–90 HB |
ADC12 Aluminum Alloy
ADC12 is a commonly used aluminum alloy in Asian die casting markets, equivalent in performance to the A383 alloy family. It offers excellent castability, good dimensional accuracy, and a strong balance between mechanical properties and production efficiency.
| Density | Melting Range | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|---|
| 2.74 g/cm³ | 515–580°C (959–1076°F) | 230–310 MPa (33–45 ksi) | 130–160 MPa (19–23 ksi) | 1–3% | 70–90 HB |

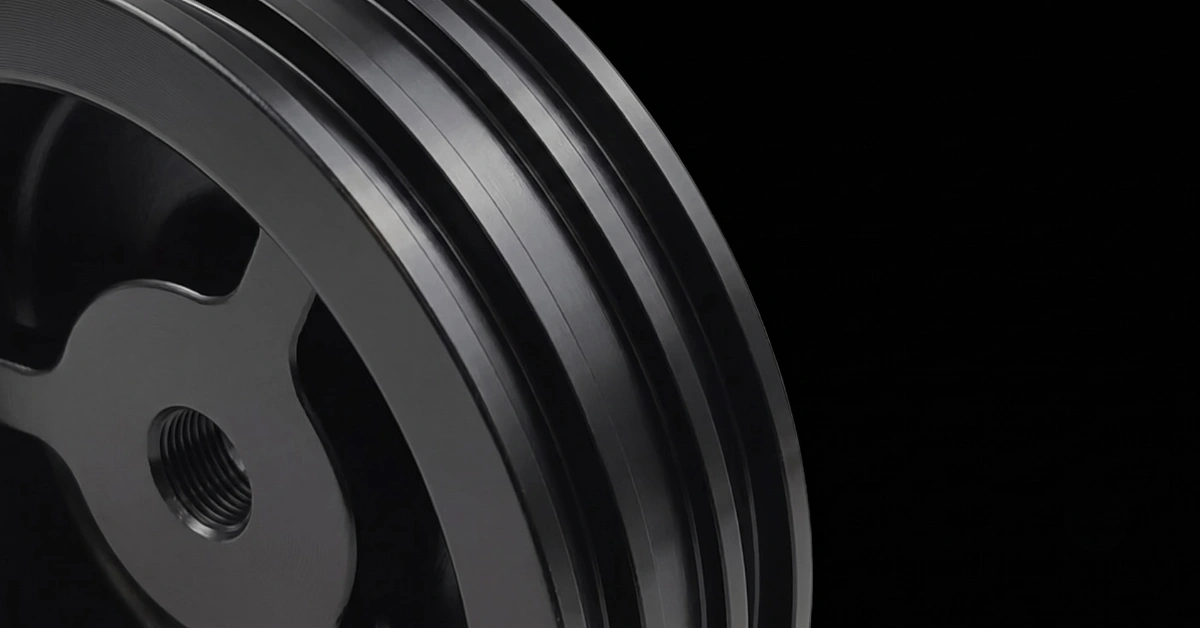

Finish Options for Aluminum Alloy Castings
We provide a range of finishing options to transform aluminum castings into ready-to-use components, including in-house processes and qualified external solutions for specific surface, performance, and appearance requirements.
| In-House Capabilities | Network |
|---|---|
| CNC finishing | Anodizing |
| Sand/bead blasting | Powder Coating |
| Heat treatment | Painting |
| Polishing | Plating |
| Laser Marking |
Applications of Aluminum Alloy Castings
| Engine brackets | Transmission housings | Structural brackets |
| Pump bodies | Valve bodies | Machine frames |
| Gearbox housings | Mounting brackets | Robot arms |
| Heat sinks | Electrical enclosures | Transmission housings |
| Equipment housings | Structural frames | Motor housings |
