Casting Pipe Fitting
Manufacturer

Utilizing precision casting and a wide range of alloys, we cast pipe fittings made for your application.

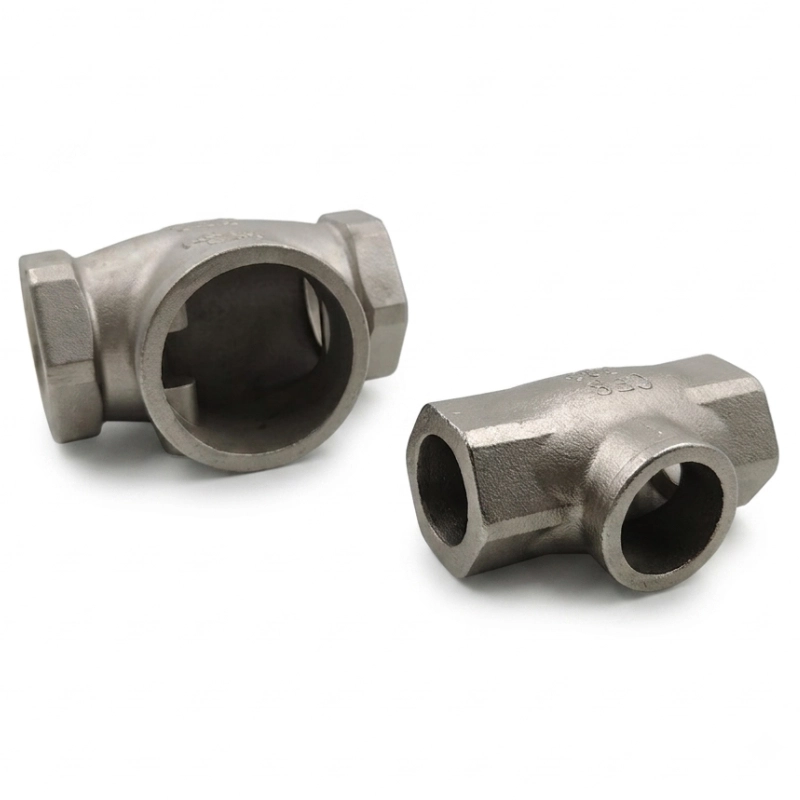

Casting Pipe Fittings

ISO 9001:2015

Quality system

Material options

30+ types alloys

Custom tooling

From drawing to production

Global delivery

FOB/DDP

Common Pipe Fitting Types

From familiar elbows and tees to proprietary connector bodies, we support standard-based and fully custom designs.

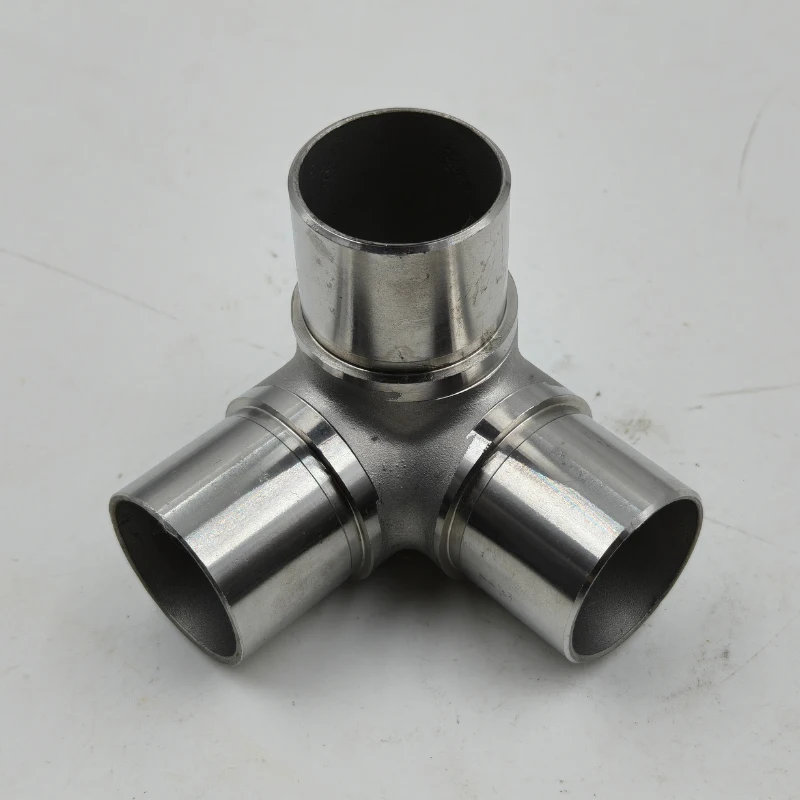

Elbows

Cast elbows for directional changes, including standard and application-specific angles, reinforced walls and machined connections.

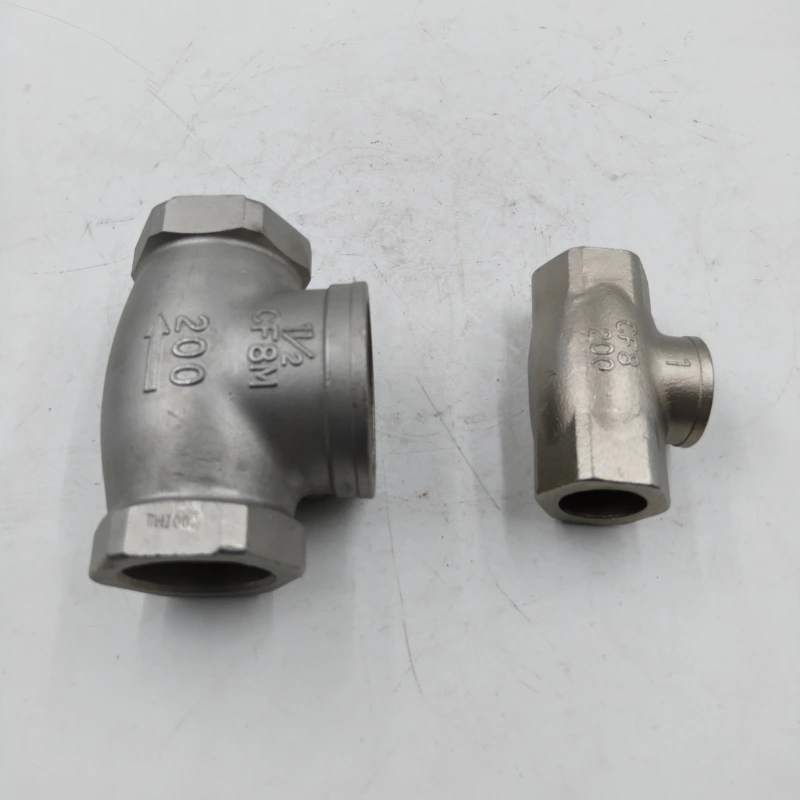

Tees & Crosses

Branch fittings with equal or reducing outlets, designed around your flow path, connection layout and machining requirements.

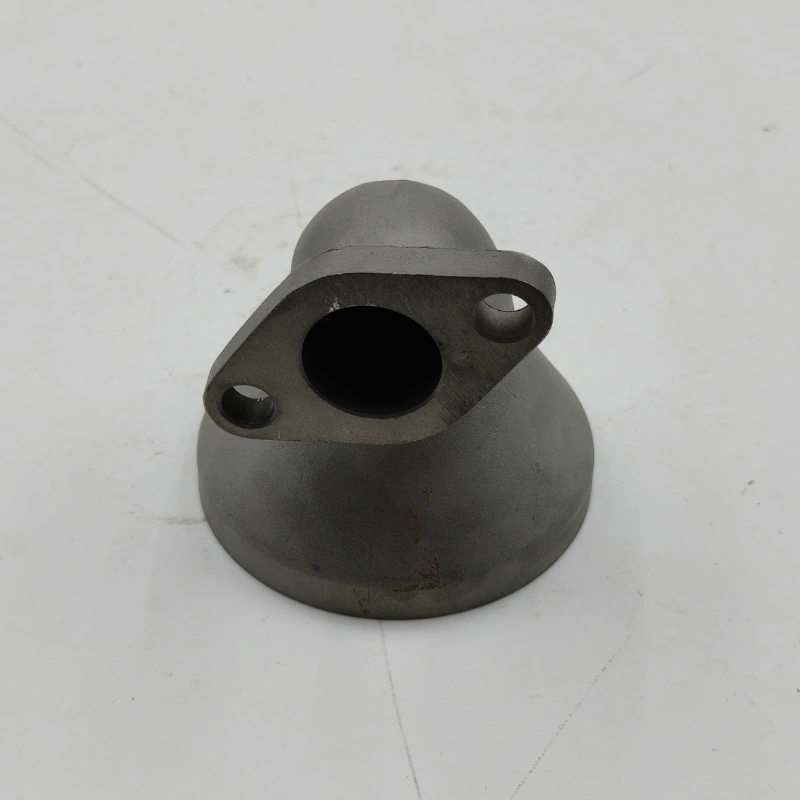

Couplings & Adapters

Couplings, reducers and adapters combining female, male or mixed connection features in one cast body.

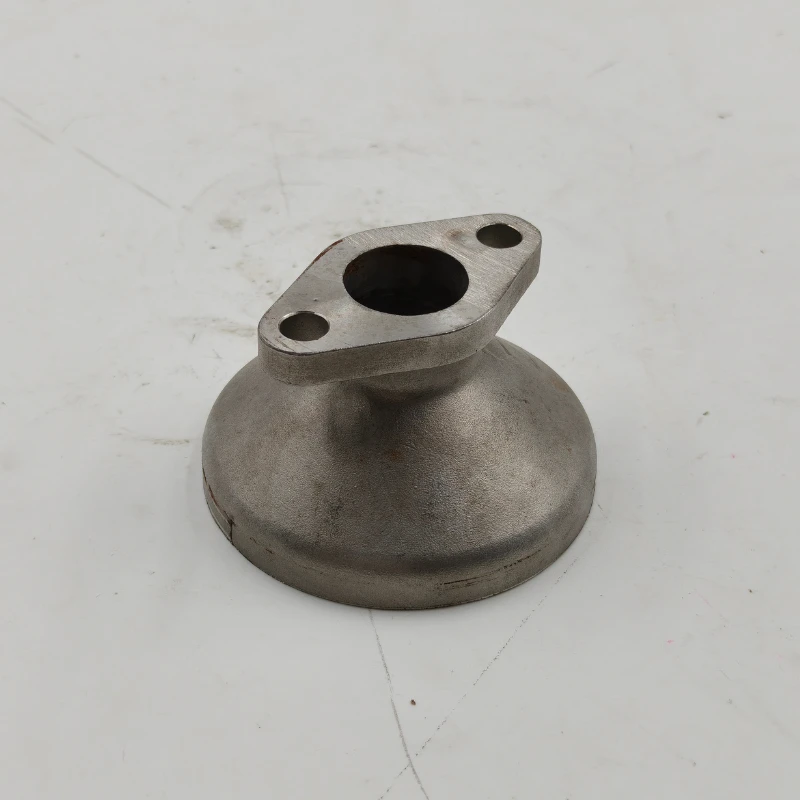

Custom Connector Bodies

Non-standard fitting bodies developed from drawings or samples for equipment, skid and fluid-handling assemblies.

Capabilities for Casting Pipe Fitting

The final material, dimensions, tolerance, service requirements and test plan are confirmed from your drawing. The table shows how we normally define a pipe fitting project.
Review Drawing
Casting process Investment casting, sand casting
Materials Stainless steel, carbon steel, alloy steel, superalloy
Connection types Female or male threaded ends, socket-weld ends and drawing-specific machined interfaces
Thread standards NPT, BSPT, BSPP and drawing-specific thread forms, subject to engineering review
Size and tolerance Manufactured to drawing
Secondary operations CNC machining, heat treatment, surface finishing, inspection and assembly support as required

Why Casting for Pipe Fittings

From familiar elbows and tees to proprietary connector bodies, we support standard-based and fully custom designs.

Complex Internal Geometry

Curved passages, branches, bosses and mounting features can be integrated into one casting, reducing fabricated joints and assembly steps.

Machining Where it Matters

Curved passages, branches, bosses and mounting features can be integrated into one casting, reducing fabricated joints and assembly steps.

Repeatable Production

Curved passages, branches, bosses and mounting features can be integrated into one casting, reducing fabricated joints and assembly steps.

Pipe Fitting Quality Control

Pipe fittings can fail at the material, thread, dimension or pressure boundary. We define inspection points around your drawing and application, then retain the agreed production and inspection records with each batch.
Material verification Material certificates and composition checks can be supplied as specified.

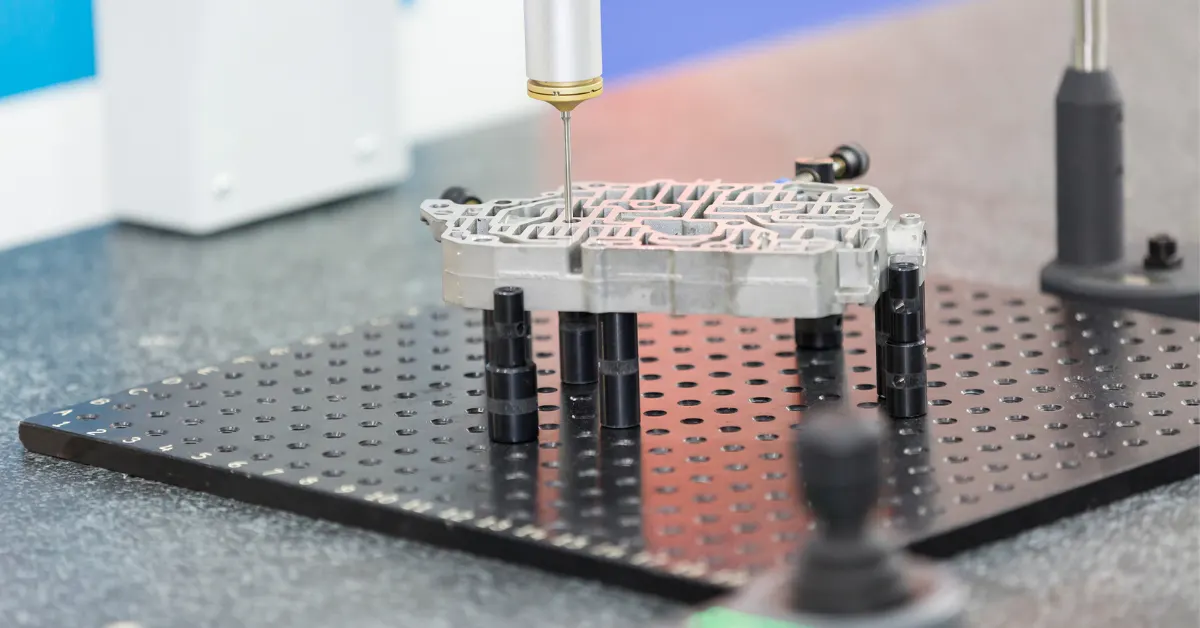

Dimensional inspection Critical dimensions, wall sections and sealing faces are checked against the approved drawing.
Thread inspection Thread form and fit are verified with suitable plug, ring or project-specific gauges.
Pressure or leakage testing Hydrostatic, pneumatic or leakage testing can be arranged when required by the project specification.

From Drawing to Delivered Fittings

A clear project path keeps technical decisions visible, reduces avoidable revisions and gives you an approval point before volume production.

01

Send drawing or sample

Share a 2D drawing, 3D model or sample together with the target material, expected volume and service conditions.

02

DFM and quotation

We review casting, machining, tooling and inspection requirements, then return technical feedback and a clear quotation.

03

Tooling and sample

Tooling is produced and first articles are submitted for dimensional and functional approval before volume production.

04

Casting and machining

Approved parts move through controlled casting, heat treatment, CNC machining and the specified surface finish.

05

Inspection and delivery

Finished fittings are inspected to the agreed plan, documented, protected for transport and shipped to your destination.

What to Know Before Requesting a Quote

The fastest quotation starts with a drawing or sample, target material, expected quantity, service conditions and any required inspection or industry standard.

Yes. We can review 2D drawings, common 3D CAD files and physical samples. Before tooling, our team evaluates castability, machining allowances, connection features, critical sealing surfaces and inspection requirements, then provides DFM feedback where needed.

Material and thread selections are project-specific. We work with stainless steel and other castable alloys, while thread forms can include NPT, BSPT, BSPP or a drawing-specific specification. The final combination is confirmed during engineering review.

MOQ and lead time depend on part size, tooling complexity, material, machining content, inspection requirements and forecast demand. Include your expected order quantity and target date in the RFQ so we can separate tooling, sample and production timing clearly.

The inspection plan is agreed before production. Depending on the drawing and purchase specification, it can include material documentation, dimensional checks, thread gauging and hydrostatic, pneumatic or leakage testing. Required records are defined with the project.

Yes. In addition to casting, we can coordinate CNC machining, heat treatment, surface finishing, cleaning, inspection and other agreed secondary operations so the delivered fittings are ready for your next manufacturing or assembly step.
