Custom Valve Castings

Source valve bodies, bonnets and other cast components for your valve design. YTD Foundry manufactures from your drawing or sample, with machining, surface finishing and inspection available through one supplier.

Send us the information you have to discuss the part, delivery options and quotation.

Valve Components We Cast

Find the part you need, from the main valve body to internal components and operating hardware. We customize the casting shape, material and machined features for your assembly.

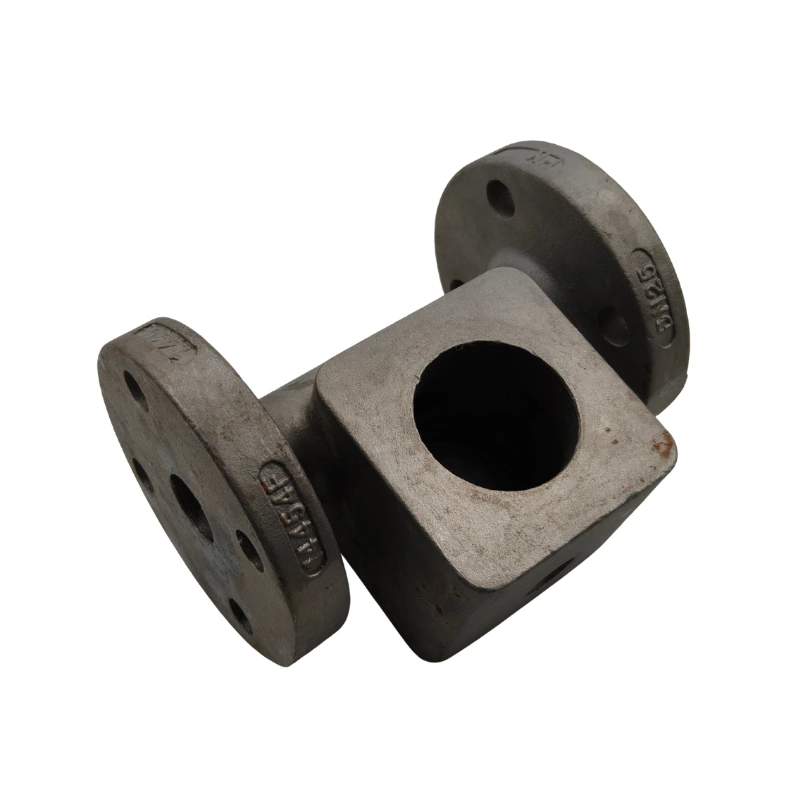

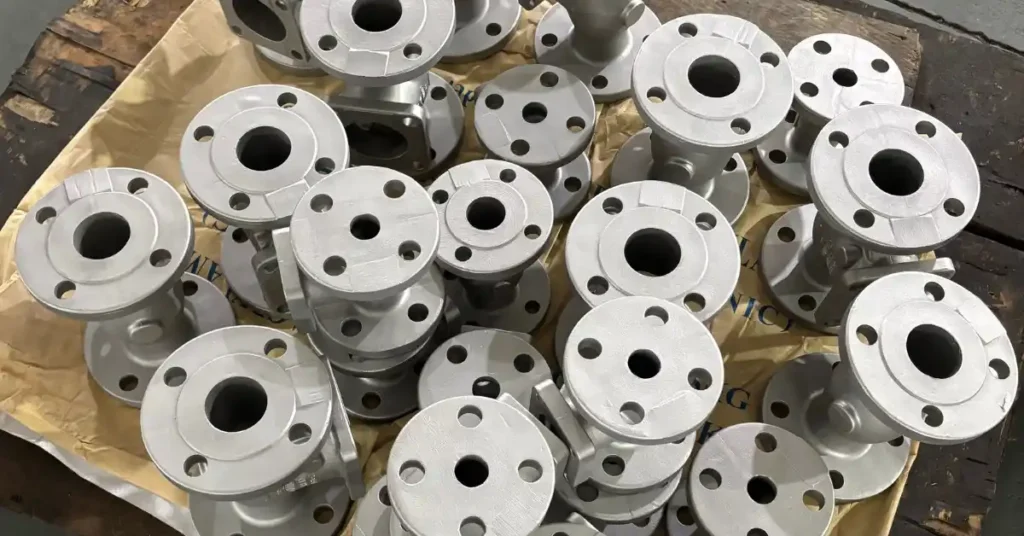

Valve Bodies

The main housing connects the valve to the pipeline and contains the flow passage. We cast the body around your port layout, with machining for flange faces, seat pockets and threaded connections.
Request a Quote

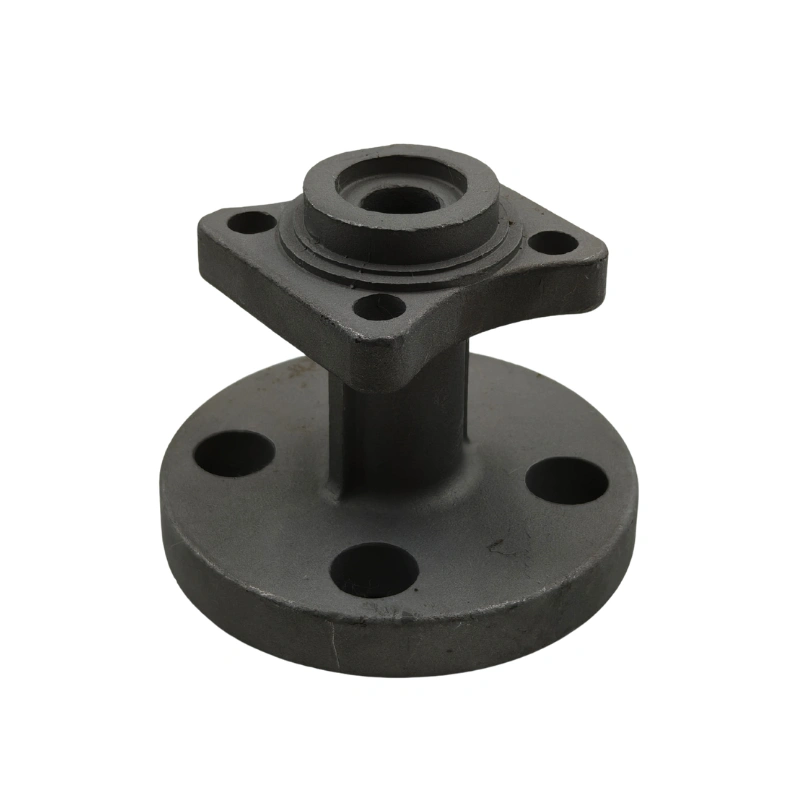

Bonnets and Covers

Bonnets and covers close the valve body and provide access to internal parts. Gasket faces, bolt patterns and stem openings can be machined to fit the mating components.
Request a Quote

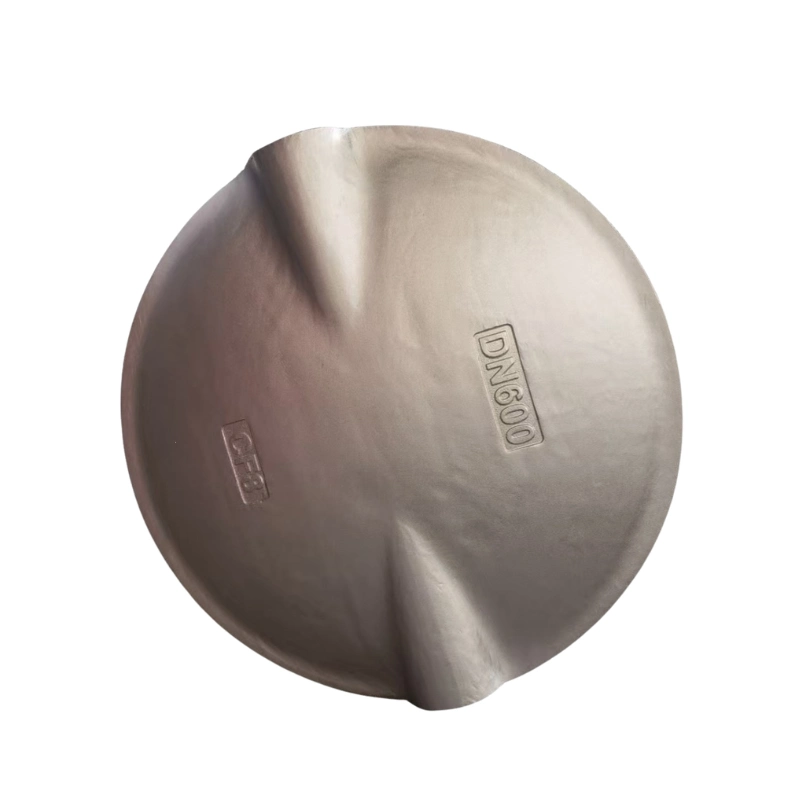

Discs and Wedges

Discs and wedges move against the valve seat to control or stop flow. Their sealing profiles and guide surfaces are finished to the dimensions in your design.
Request a Quote

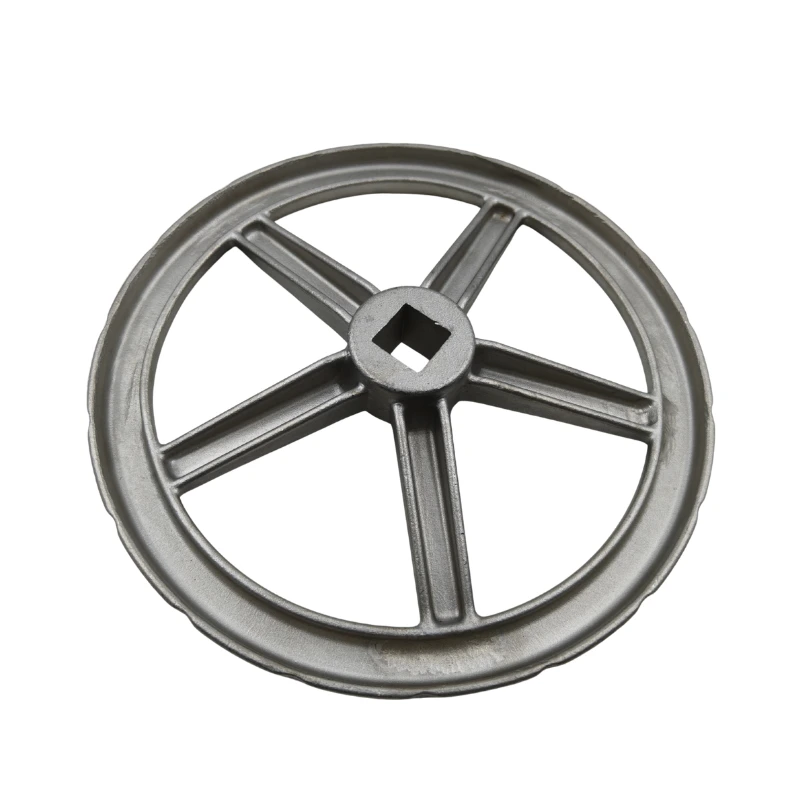

Handwheels and Levers

Handwheels and levers provide the grip and movement for manual operation. Hub shapes, spoke layouts and shaft connections can be customized for your valve mechanism.
Request a Quote

Cast Parts for Different Valve Types

Already know the valve type? Match it to the components below. Each part is made for your valve design, including the connections, internal layout and operating mechanism.

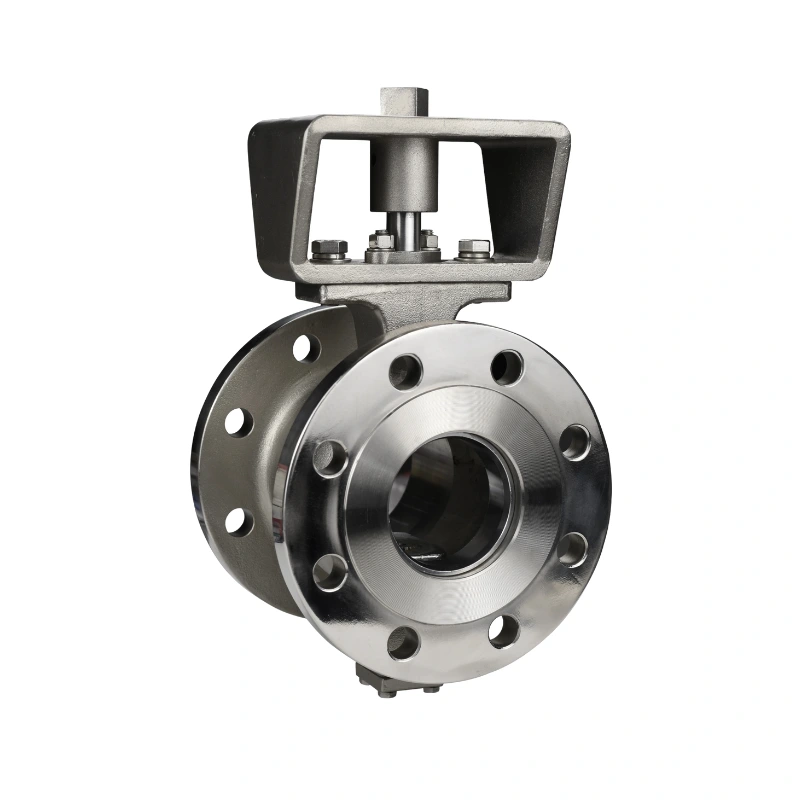

Ball Valve Parts

Bodies, end covers and balls for quarter-turn valves. The body and cover geometry accommodates the ball, seats and stem, with connections matched to your piping arrangement.
Request a Quote

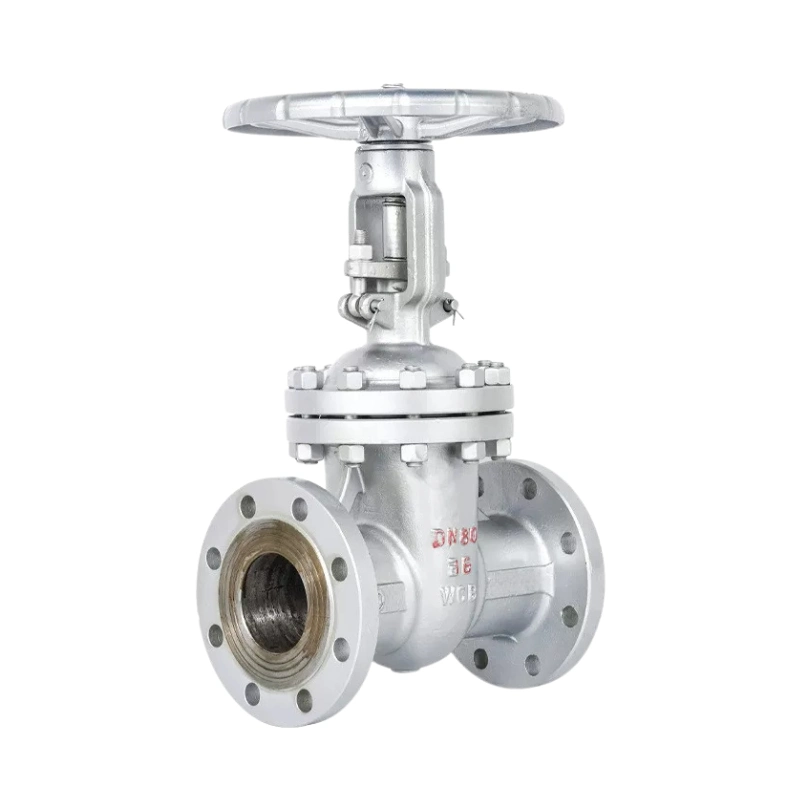

Gate Valve Parts

Bodies, bonnets, wedges and yokes for gate valve assemblies. The body cavity and guide features provide space for the wedge to travel between the open and closed positions.
Request a Quote

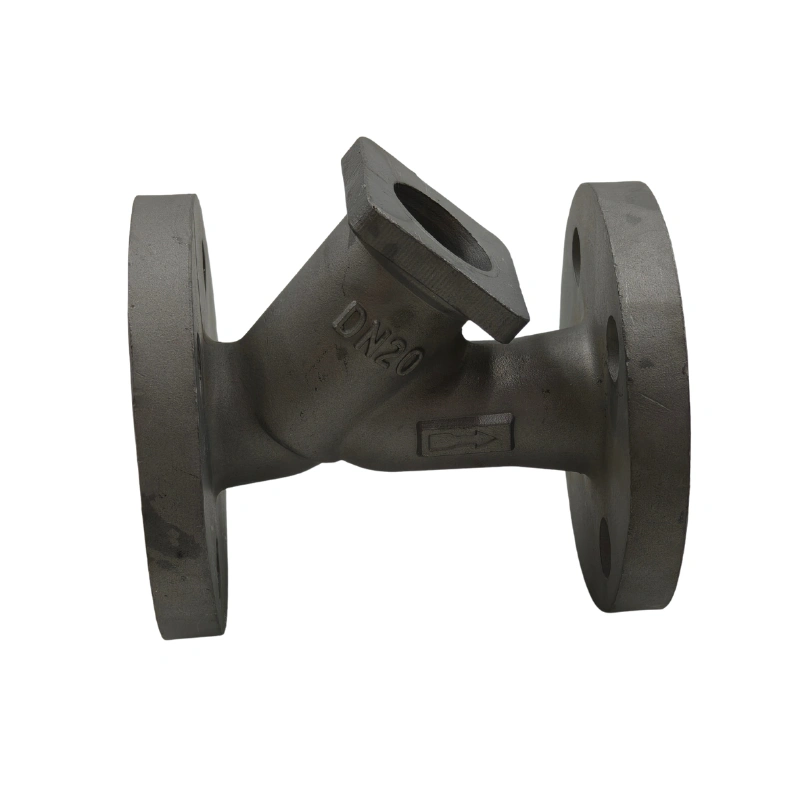

Globe Valve Parts

Bodies, bonnets and discs for globe valves. Internal passages, seat locations and stem openings follow the layout of your design, with machining at the mating and sealing surfaces.
Request a Quote

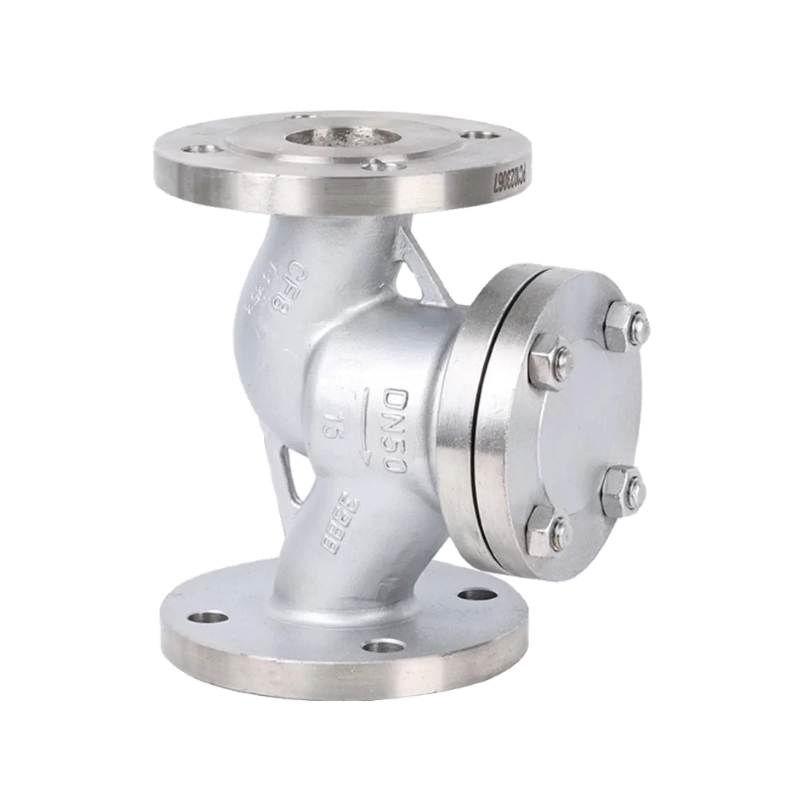

Check Valve Parts

Bodies, covers and discs for valves that prevent reverse flow. Swing, lift and other check valve designs require different internal clearances and component shapes.
Request a Quote

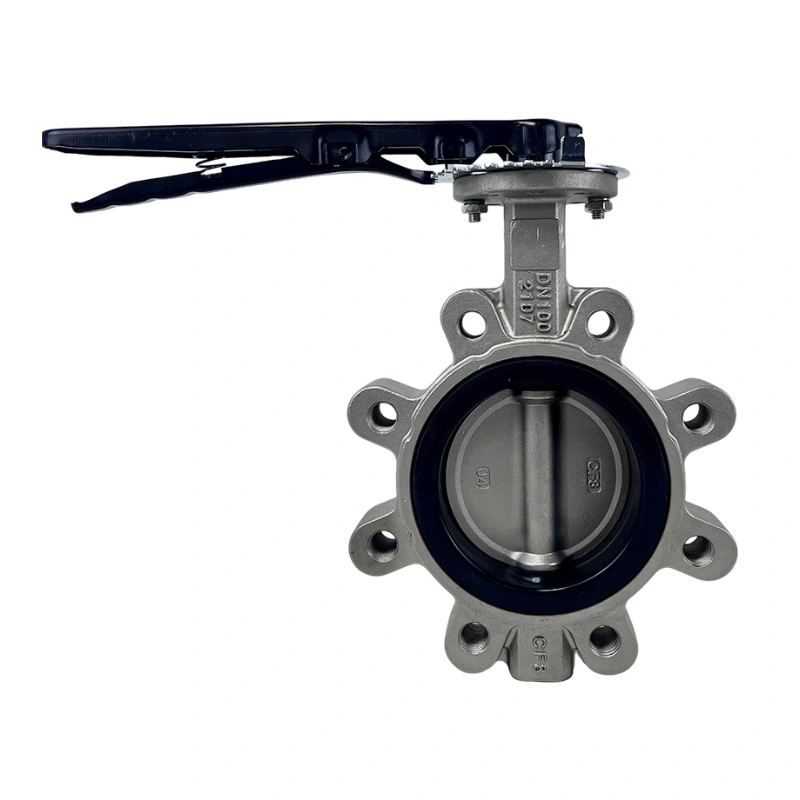

Butterfly Valve Parts

Bodies and discs for butterfly valves. Disc shape, shaft openings and seat connections are coordinated with your design so the components fit the intended assembly.
Request a Quote

Valve Casting Materials

Start with your specified material, or tell us about the fluid, temperature and operating conditions. We help review the material and manufacturing requirements together before quoting your part.

Stainless Steel

Stainless steel valve castings are a common choice where contact with water or process fluids makes corrosion resistance important. The grade needs to suit the fluid chemistry, temperature and cleaning conditions.

Carbon Steel

Carbon steel is widely used for industrial valve bodies and bonnets. Your material specification, operating temperature and mechanical requirements guide the grade and any required heat treatment.

Alloy Steel

Alloy steel grades offer options when a valve component needs particular strength, wear resistance or heat resistance. We review the grade and heat treatment together with your required properties.

Nickel-Based Alloys

Nickel-based alloys provide options for demanding corrosion or temperature conditions. YTD's experience with nickel-based castings supports projects where the material requirements call for a specialized alloy.

Discuss Your Valve Casting

Have a drawing, model, photo or sample? Start with what you have. Add the material, quantity and operating conditions if known. We will review the part, clarify any missing details and outline the manufacturing steps and delivery options for a quotation.

Request a Quote

Machining for Valve Assembly

A valve casting needs more than the right overall shape. Its sealing, locating and mounting features must also fit the other parts in your assembly.

We machine the features that matter to that fit:

  • Seat pockets and bores that locate internal components.
  • Sealing and gasket faces that meet mating parts.
  • Stem and shaft holes that position the operating mechanism.
  • Flange faces, threads and bolt patterns that connect the valve to the pipeline or actuator.

YTD handles casting and CNC machining as one project. We plan the cast shape with extra material where needed for machining, helping carry your drawing requirements through to the finished part.

Learn more about our investment casting and sand casting services.

Explore CNC Machining

Valve Casting Delivery Options

Order the casting at the stage that fits your production. YTD can coordinate tooling, casting, machining, surface finishing and inspection, reducing the number of suppliers you need to manage.

Cast Blanks

Receive cleaned castings for machining in your own facility. We review which surfaces need machining allowance so your team can complete the part to its final dimensions.

Machined Components

Have us finish the specified bores, faces, threads and mounting features. You can retain selected operations in your own production or source the component with all drawing-defined machining completed.

Finished and Inspected Parts

Combine machining with the specified surface treatment, inspection and packaging. The quotation identifies the included operations and checks so you know which steps are completed before delivery.

Valve Casting Inspection

For valve parts, material properties, mating dimensions and casting defects can all affect acceptance. We agree the inspection scope with you so the checks address your part’s requirements.

  • Material and mechanical properties: Spectrometric analysis checks alloy composition. Tensile and hardness testing can be included where required by your specification.
  • Critical dimensions: Dimensional inspection, including CMM measurement where needed, checks specified bores, faces, hole positions and other assembly features.
  • Casting defects: Fluorescent penetrant testing can reveal surface-breaking defects. X-ray inspection can help identify internal defects that visual checks cannot show.

Share your required tests, acceptance criteria and reports when available. We confirm the inspection methods, sampling and documentation with the quotation and sample plan.

Request a Quote

Inside YTD Foundry

Founded in 2008, YTD Foundry combines in-house mold making, investment casting and CNC machining in a factory of more than 10,000 square meters. These capabilities support the work from tooling and sample development through production, giving you one team to work with on both the casting and the finished part.
Integrated Production Facility
CNC Machining Center
Slurry Coating
Investment Casting Foundry - YTD Foundry
Casting Workshop
Mold Machining
Casted Mold
Steel Mold
Aluminum Mold
CNC Machined Mold
Wax Injection
Slurry Coating
Shell Drying
Dewaxing
Investment Casting Foundry - YTD Foundry
Melting & Pouring
Triming
Post Processing
CMM/Hardness/Spectrometer Test
Wax Pattern Check
Wax Pattern Trimming

Valve Casting FAQs

Practical answers about starting a custom project, choosing a process and planning production.

Yes. Send a photo, model, sample details or a description of the part you need. We will identify the dimensions, material and other information needed for an assessment and quotation. If a physical sample is available, we can discuss how to use it. The manufacturing details are confirmed before tooling or production begins.

We review the material, shape, size, internal passages, quantity and machining requirements. Investment casting and sand casting offer different ways to produce valve components. You can specify a process or ask us to recommend a route after reviewing the part.

Yes. We can plan samples before repeat production and review a tooling route for smaller orders. Where suitable, 3D-printed wax patterns can support batches of around 10 pieces without conventional tooling, usually at a higher unit cost. Conventional projects typically start at 50 or 100 pieces, depending on the part and project.

General production lead times are around 30–90 days, depending on complexity, machining and inspection. A new design may also need time for requirements review, tooling and sample approval. We clarify which stages the quoted lead time includes and discuss the shipping schedule separately. Complex projects can take longer.
